Lautsprecherchassis LE425
Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
- Year
- 1950 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 270771
LE425 mit Kompensationswicklung
LE425 ohne Kompensationswicklung
- Wave bands
- - without
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecherchassis LE425 - Stern-Radio Rochlitz, VEB, RFT
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 220 x 220 x 150 mm / 8.7 x 8.7 x 5.9 inch
- Notes
-

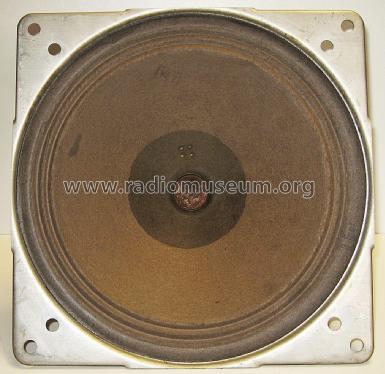

Rundes Breitband-Lautsprecherchassis ohne Hochtonkegel; Chassis: Aluminiumblech, offen, mit 8 diagonalen Befestigungslöchern (170 x 170 mm und 195 x 195 mm).
Ausführungen mit bzw. ohne Kompensationswicklung.
- Net weight (2.2 lb = 1 kg)
- 2.432 kg / 5 lb 5.7 oz (5.357 lb)
