Aida-Musikschrank 5U69

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 281502) Radio

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 281503) Radio

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 281504) Radio

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2082013) Radio

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2082014) Radio

Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2082015) Radio
Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2440253) Radio Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2440254) Radio
Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2440255) Radio Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 1895350) Radio
Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 39016) Radio
Use red slider bar for more.
Aida-Musikschrank 5U69; Stern-Radio Staßfurt (ID = 2440253) Radio
Stern-Radio Staßfurt: Aida-Musikschrank 5U69 [Radio] ID = 2440253 1400x1120
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aida-Musikschrank 5U69, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:
Ebay_333367918188

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner

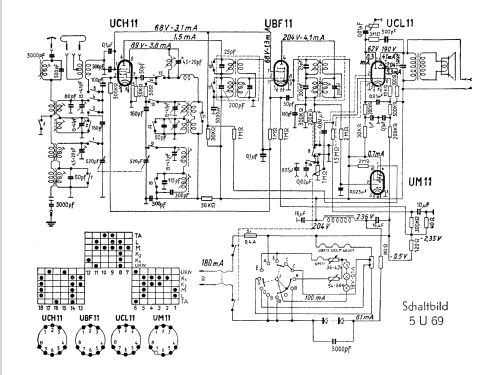

Valves / Tubes 4: UCH11 UBF11 UCL11 UM11
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (not changer)
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Aida-Musikschrank 5U69 - Stern-Radio Staßfurt, VEB, RFT

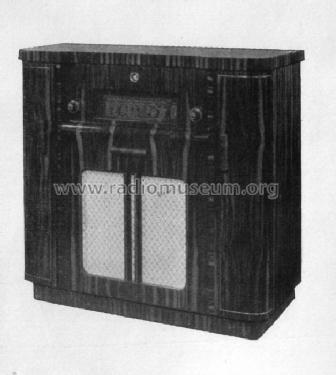

Material Wooden case
Dimensions (WHD) 1000 x 880 x 420 mm / 39.4 x 34.6 x 16.5 inch
Notes 4 eingebaute Plattenständer für 72 Platten
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

Model page created by Steffen Bartusch. See "Data change" for further contributors.
