Color 22

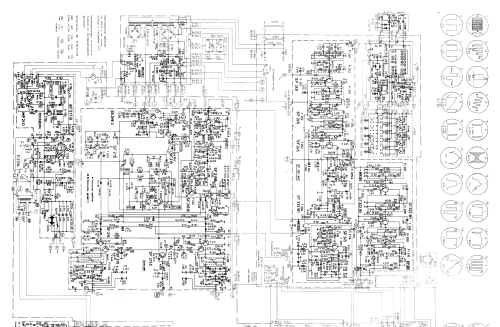

Color 22; Stern-Radio Staßfurt (ID = 308407) Television

Color 22; Stern-Radio Staßfurt (ID = 308413) Television

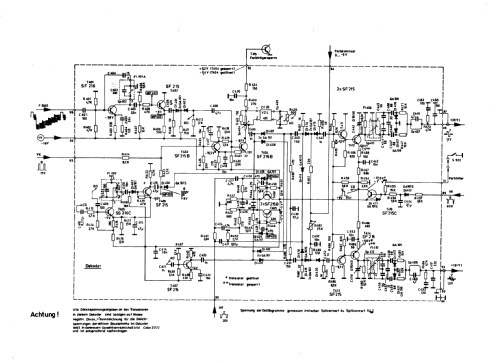

Color 22; Stern-Radio Staßfurt (ID = 1247209) Television

Color 22; Stern-Radio Staßfurt (ID = 1247210) Television

Color 22; Stern-Radio Staßfurt (ID = 1247211) Television
Color 22; Stern-Radio Staßfurt (ID = 199235) Television Color 22; Stern-Radio Staßfurt (ID = 952024) Television
Color 22; Stern-Radio Staßfurt (ID = 1314187) Television Color 22; Stern-Radio Staßfurt (ID = 1314188) Television
Use red slider bar for more.
Color 22; Stern-Radio Staßfurt (ID = 199235) Television
Stern-Radio Staßfurt: Color 22 [Television] ID = 199235 400x320
Select picture or schematic to display from thumbnails on the right and click for download.
For model Color 22, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:
ebay, mit freundlicher Genehmigung

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1974/1975 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 59ЛК3Ц
Semiconductors (the count is only for transistors) 74:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Color 22 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 750 x 520 x 520 mm / 29.5 x 20.5 x 20.5 inch
Notes C-Diodentuner Kanäle 2-4, 5-12 und 21-40. Nur mit Secamdecoder. Lochmaskenbildröhre alternativ auch A56-120X. Nachfolger des Color 21, Vorstellung auf der Leipziger Herbstmesse 1975. Fünfteiliger fest programmierter Senderspeicher, 1x Band I, 2x Band III und 2x Band IV.
Price in first year of sale 3'500.00 DM
Source of data -- Collector info (Sammler)
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1976)
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.

Model page created by Mario Spitzer. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
Here you find 398 models, 316 with images and 310 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio Staßfurt: Color 22
Threads: 1 | Posts: 1
Hits: 1275     Replies: 0
stern-stas: 22; Color
Wolfgang Lill
06.Jan.15
  1

In Zwickau würde ein Color 22 auf einen Sammler warten. Hat jemand Interesse an dem Gerät?
