Colortron 3201
Use red slider bar for more.
Stern-Radio Staßfurt: Colortron 3201 [Television] ID = 654097 481x363

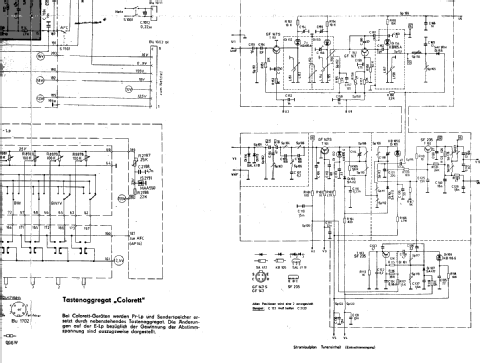

Select picture or schematic to display from thumbnails on the right and click for download.
For model Colortron 3201, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:
Bedienungsanleitung
|
|
alternative name
|
Fernsehgerätewerk Staßfurt
|
Year:
1981
|
Category: Television Receiver (TV) or Monitor |
Valves / Tubes |
1:
670CZB22-TC03 or A67-701X
|
Semiconductors (the count is only for transistors) |
Semiconductors present.
|
Main principle |
Superheterodyne (common); ZF/IF 38900 kHz
|
Wave bands |
VHF incl. FM and/or UHF (see notes for details) |
Details |
|
Power type and voltage |
Alternating Current supply (AC) / 220 Volt |
Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
Power out |
2 W (unknown quality) |
from Radiomuseum.org |
Model: Colortron 3201 - Stern-Radio Staßfurt, VEB, RFT |
Material |
Wooden case |
Shape |
Tablemodel, low profile (big size). |
Dimensions (WHD) |
800 x 540 x 410 mm / 31.5 x 21.3 x 16.1 inch |
Notes |
Der Empfänger Colortron 3201 entspricht in seiner Konzeption dem Colortron 3001, hat aber ein Drehgestell, welches im Lieferumfang enthalten ist. Es kommt ein Sperrwandler- Netzteil (SNT) zum Einsatz. Das Gerät hat ein Horitontalchassis, welches die Ablenkschaltungen, den Farbdecoder und die RGB- Ansteuerung trägt. Der Tuner, der Bild- ZF- Verstärker und die AFC- Schaltung, sowie die Bedienelemente sind auf dem Empfangschassis untergebracht. Empfangen werden VHF Kanal 2 - 12 und UHF Kanal 21 - 39 nach CCIR in der Farbnorm SECAM. Die Umschaltung der 8 Speicherplätze erfolgt mit Kurzhubtasten, eine LED zeigt den ausgewählten Programmplatz an. Anschlüsse für ein Bandgerät und für einen Kopfhörer sind vorhanden. |
Net weight (2.2 lb = 1 kg) |
39 kg / 85 lb 14.4 oz (85.903 lb) |
Price in first year of sale |
5'800.00 Mark |
Mentioned in |
Service-DVD Funkverlag B. Hein |
Model page created by a member from A. See "Data change" for further contributors.
