Debüt VT 132

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997355) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997356) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997293) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997294) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997296) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997297) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997298) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997299) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997300) Television

Debüt VT 132; Stern-Radio Staßfurt (ID = 1997301) Television
Debüt VT 132; Stern-Radio Staßfurt (ID = 1717774) Television
Use red slider bar for more.
Debüt VT 132; Stern-Radio Staßfurt (ID = 1717774) Television
Stern-Radio Staßfurt: Debüt VT 132 [Television] ID = 1717774 1114x798
Select picture or schematic to display from thumbnails on the right and click for download.
For model Debüt VT 132, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...:

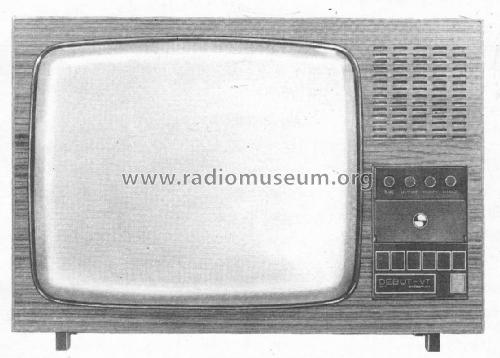

Katalogabbildung

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1977 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: B50G1
Semiconductors (the count is only for transistors) 26:
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Debüt VT 132 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Dimensions (WHD) 620 x 430 x 340 mm / 24.4 x 16.9 x 13.4 inch
Notes

Freie Senderprogrammierung, sechsteiliger Programmspeicher, VHF, UHF nur Band IV, Anschluß für Zweitlautsprecher. Modular aufgebautes Horizontalchassis, Hochspannungsgleichrichtung mit Selenstab. Eingesetzte Bildröhre: B50G1.

Gehäusevarianten: -poliert- (1630 Mark), -mattiert- (1610 Mark).

Price in first year of sale 1'630.00 Mark
Source of data -- Original prospect or advert
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1984)

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
Here you find 398 models, 316 with images and 310 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
