• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1979 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96017

• • alternative name: Fernsehgerätewerk Staßfurt

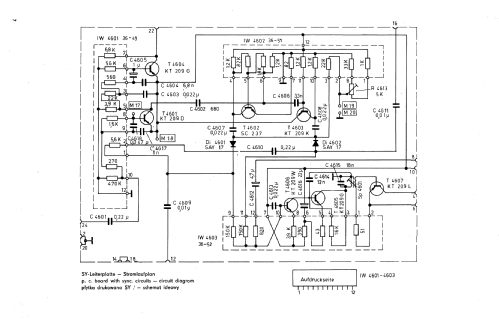

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• B61G1

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Luxomat VT 539 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 710 x 500 x 380 mm / 28 x 19.7 x 15 inch

• Notes
• s/w TV mit 110° Bildröhre, VHF/UHF Tuner nach CCIR B/G. VHF Kanal 2 bis 12, UHF Kanal 21 bis 39, Anschlüsse für Tonband und Kopfhörer. Vorstellung auf der Leipziger Herbstmesse 1979.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Service- DVD vom Funkverlag B. Hein

• Author
• Model page created by a member from A. See "Data change" for further contributors.
