Onyx 8U156 I

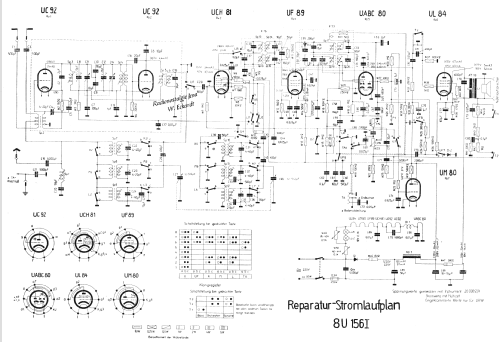

Onyx 8U156 I; Stern-Radio Staßfurt (ID = 468800) Radio

Onyx 8U156 I; Stern-Radio Staßfurt (ID = 468801) Radio

Onyx 8U156 I; Stern-Radio Staßfurt (ID = 679362) Radio

Onyx 8U156 I; Stern-Radio Staßfurt (ID = 679363) Radio
Onyx 8U156 I; Stern-Radio Staßfurt (ID = 226270) Radio Onyx 8U156 I; Stern-Radio Staßfurt (ID = 226271) Radio
Onyx 8U156 I; Stern-Radio Staßfurt (ID = 226272) Radio Onyx 8U156 I; Stern-Radio Staßfurt (ID = 497728) Radio
Onyx 8U156 I; Stern-Radio Staßfurt (ID = 497729) Radio Onyx 8U156 I; Stern-Radio Staßfurt (ID = 497730) Radio
Onyx 8U156 I; Stern-Radio Staßfurt (ID = 497731) Radio Onyx 8U156 I; Stern-Radio Staßfurt (ID = 497732) Radio
Use red slider bar for more.

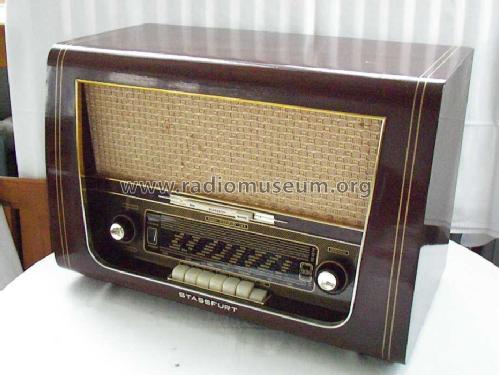

Onyx 8U156 I; Stern-Radio Staßfurt (ID = 226270) Radio
Stern-Radio Staßfurt: Onyx 8U156 I [Radio] ID = 226270 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Onyx 8U156 I, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UC92 UC92 UCH81 UF89 UM80 UABC80 UL84
Semiconductors (the count is only for transistors) Selen
Main principle Superheterodyne (common); ZF/IF 468/6700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Onyx 8U156 I - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 584 x 395 x 300 mm / 23 x 15.6 x 11.8 inch
Notes 3-Tasten-Klangregister
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 499.00 Mark
Source of data -- Collector info (Sammler)
Mentioned in Funkverlag Hein, Service-DVD

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
