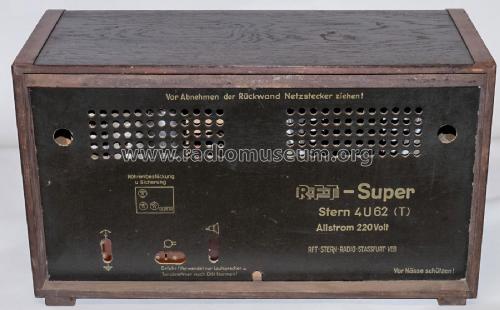

RFT Einheitssuper 4U62T Holzgehäuse Holzgehäuse des RFT Einheitssupers 4U61
Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
- Year
- 1950/1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328131
-
- alternative name: Fernsehgerätewerk Staßfurt
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Selengleichrichter
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: RFT Einheitssuper 4U62T Holzgehäuse [Holzgehäuse des RFT Einheitssupers 4U61] - Stern-Radio Staßfurt, VEB, RFT
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Wahrscheinlich wurden beim Produktionsanlauf des 4U62(T) noch Restgehäuse vom 4U61 verarbeitet.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
