• Year
  • 1968 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243142

 Technical Specifications

  • Number of Transistors
  • 10
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 10 Transistor - Stewart Lynn Stewart Co.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.5 x 4.18 x 1.25 inch / 64 x 106 x 32 mm
  • Notes

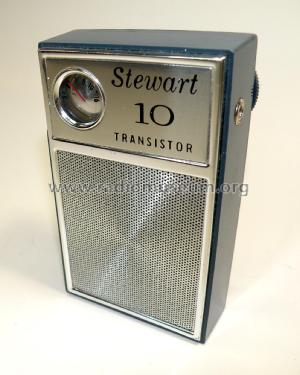

  • AM Pocket All Silicon Transistor Radio Model Stewart 10 Transistor.
    Tuning Range 535 - 1605 kHz, Earphone Jack, Carrying Case with Wrist Strap.
    British Crown Colony of Hong Kong.

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
