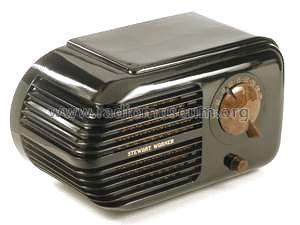

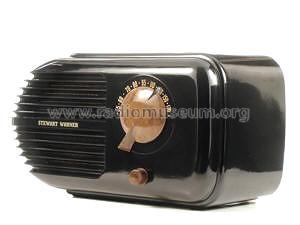

07-511 Campus Ch= 07-51

Stewart Warner Corp.; Chicago (IL)

  • Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 60393
    • Brand: Ferrodyne

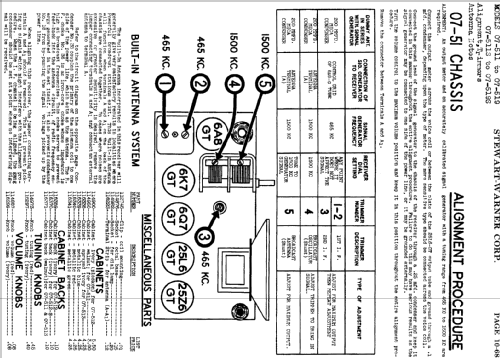

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 07-511 Campus Ch= 07-51 - Stewart Warner Corp.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 9 x 5 x 5.5 inch / 229 x 127 x 140 mm
  • Notes

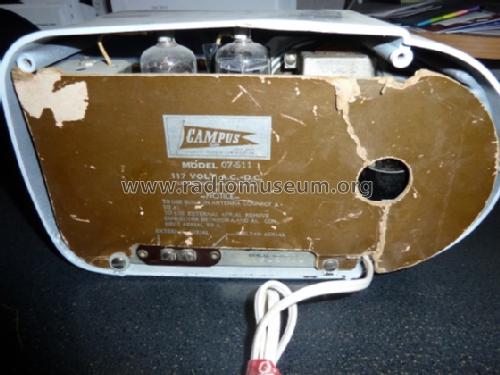

  • Model 07-511 uses chassis 07-51; built-in antenna.

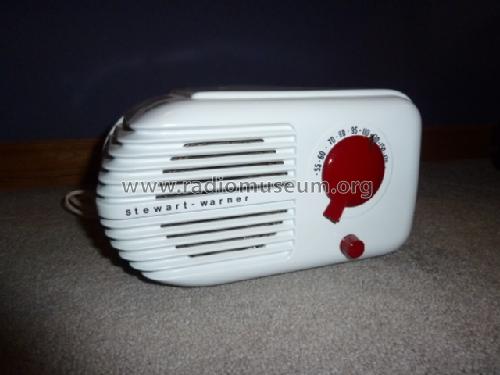

    Brown bakelite. Same model available in ivory plaskon: model 07-512.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
