207DK Ch= 207D

207DK Ch= 207D; Stewart Warner Corp. (ID = 544094) Radio

207DK Ch= 207D; Stewart Warner Corp. (ID = 544095) Radio

207DK Ch= 207D; Stewart Warner Corp. (ID = 544100) Radio

207DK Ch= 207D; Stewart Warner Corp. (ID = 544101) Radio

207DK Ch= 207D; Stewart Warner Corp. (ID = 560825) Radio

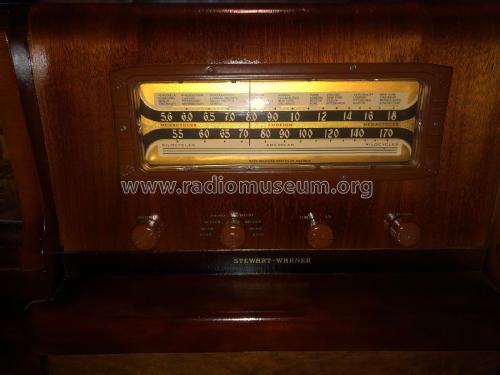

207DK Ch= 207D; Stewart Warner Corp. (ID = 2425960) Radio 207DK Ch= 207D; Stewart Warner Corp. (ID = 2424193) Radio
207DK Ch= 207D; Stewart Warner Corp. (ID = 2425961) Radio 207DK Ch= 207D; Stewart Warner Corp. (ID = 715223) Radio
Use red slider bar for more.
207DK Ch= 207D; Stewart Warner Corp. (ID = 2425960) Radio
Stewart Warner Corp.: 207DK Ch= 207D [Radio] ID = 2425960 1400x2042
Select picture or schematic to display from thumbnails on the right and click for download.
For model 207DK Ch= 207D, Stewart Warner Corp.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Stewart Warner Corp.; Chicago (IL)
Brand

Ferrodyne
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 7H7 6J5GT 6SK7 6J5GT 6SQ7 6F6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: 207DK Ch= 207D - Stewart Warner Corp.; Chicago
Shape Console with any shape - in general
Notes Built-in loop antenna.
Collectors' prices
External source of data Ernst Erb
Source of data Pre-War Consoles
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 05, 1942


All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
Here you find 2065 models, 351 with images and 1925 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
