• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 148315

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org

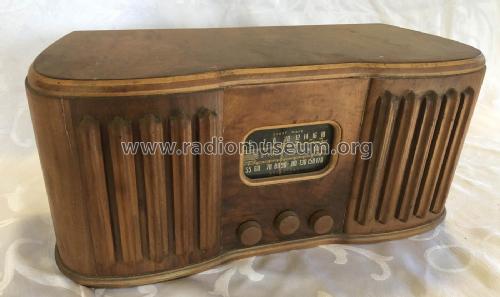

  • Model: 469 - Stewart Warner; Ontario
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Stewart-Warner Sheet 94
