9162-D ; Stewart Warner Corp. (ID = 1335481) Radio
9162-D ; Stewart Warner Corp. (ID = 1333728) Radio 9162-D ; Stewart Warner Corp. (ID = 1333720) Radio
9162-D ; Stewart Warner Corp. (ID = 1333723) Radio 9162-D ; Stewart Warner Corp. (ID = 1333724) Radio
9162-D ; Stewart Warner Corp. (ID = 1516603) Radio
Use red slider bar for more.
9162-D ; Stewart Warner Corp. (ID = 1333728) Radio

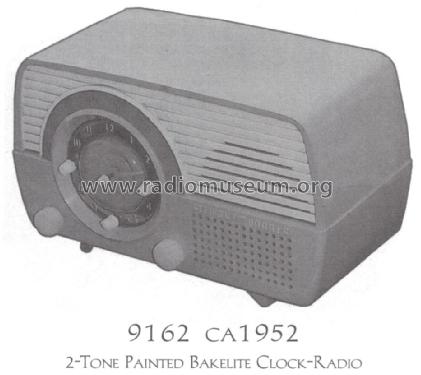

Stewart Warner Corp.: 9162-D [Radio] ID = 1333728 640x464
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9162-D, Stewart Warner Corp.; Chicago (IL):
American Radio Design Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Stewart Warner Corp.; Chicago (IL)
Brand

Ferrodyne
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: 9162-D - Stewart Warner Corp.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 11.4 x 6.8 x 5.9 inch / 290 x 173 x 150 mm
Notes

The Stewart-Warner model 9162 was available in different colors:

  • 9162-A: rust & tan
  • 9162-B: yellow & black
  • 9162-D: brown & sand
  • 9162-E: turquoise & ivory

Model 9162-C isn't known yet.

Net weight (2.2 lb = 1 kg) 2.2 lb (2 lb 3.2 oz) / 0.999 kg
Mentioned in Beitman Radio Diagrams, Vol. 12, 1952 (schematic only)
Literature/Schematics (1) Rider's Perpetual, Volume 23 (last) = covering up to 1954 (schematic only)
Literature/Schematics (2) Machine Age to Jet Age II (page 292.)

Model page created by Greg Mercurio. See "Data change" for further contributors.
