97-564S Ch= 97-56S
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61532
-
- Brand: Ferrodyne

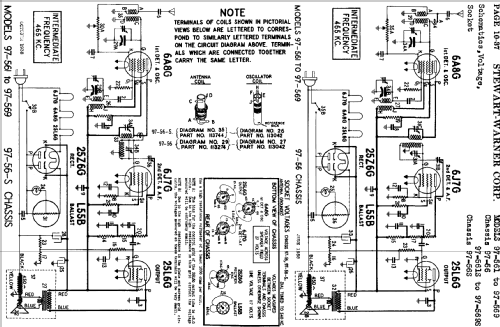

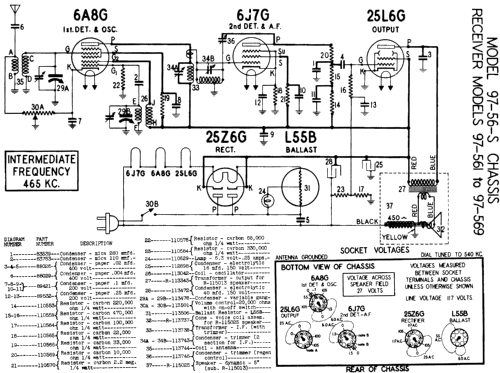

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 97-564S Ch= 97-56S - Stewart Warner Corp.; Chicago
- Notes
- Model 97-564S uses chassis 97-56S; push button tuner; intermediate frequency regeneration; ballast tube L55B.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
