• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61666

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12BE6 12BA6 12BA6 12AL5 6AQ6 50B5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

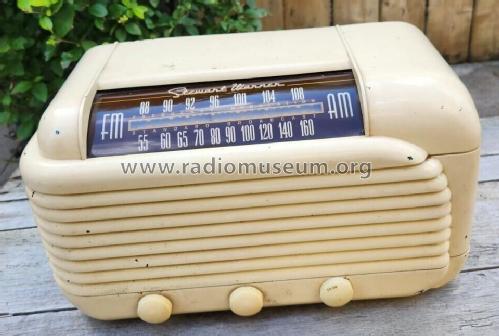

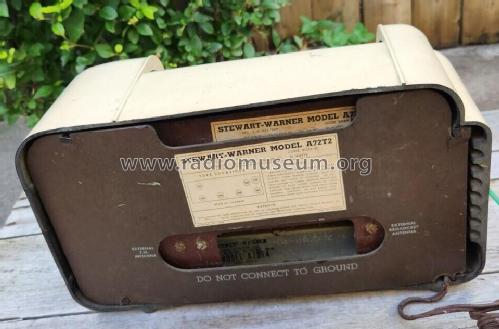

• Model: A72T2 Ch= 9026B - Stewart Warner Corp.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes
• Selenium Rectifier.
  Color= Ivory. Tuning 540 to 1600 kc.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Mentioned in
• Radio Retailing (Radio & Television R.) (June 1947 page 51.)

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 32, Date 1/48, Folder 482-24)
