All Electric A.C. Combination
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1928/1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 229720
-
- Brand: Ferrodyne
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- TRF without regeneration
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Magnetic loudspeaker (reed) generic.
- Material
- Metal case
- from Radiomuseum.org
- Model: All Electric A.C. Combination - Stewart Warner Corp.; Chicago
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-
Combination of Model 801-A Series B Receiver with Model 435-A Reproducer. Completely self-contained. Seven receiving tubes push-pull power stage. Four tuned circuits. One dial control. Calibrated wave length dial illuminated.
- Price in first year of sale
- 112.00 USD
- Source of data

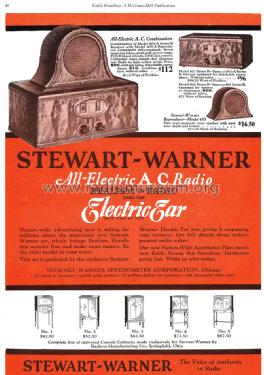

- Radio Retailing (Radio & Television R.)
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
