• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 232245
    • Brand: Ferrodyne

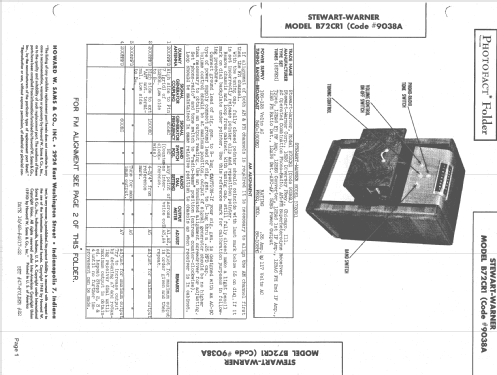

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.75 inch = 19.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B72CR1 Code 9038A - Stewart Warner Corp.; Chicago
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • AC Operated Combination Phono-Radio, AM-FM Superheterodyne Receiver.

    AM: 540-1600kc  FM: 88-108MC.
