Console Radio 101-A
Stewart Warner Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stewart Warner Corp.; Chicago (IL)
- Year
- 1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283750
-
- Brand: Ferrodyne
- Number of Tubes
- 4
- Main principle
- TRF without regeneration; Screengrid 1926-1935
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 50 to 60 cycles, 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

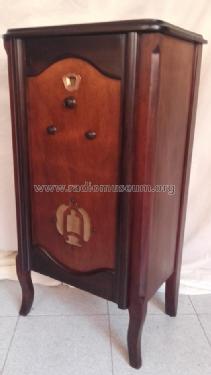

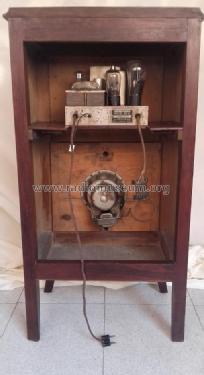

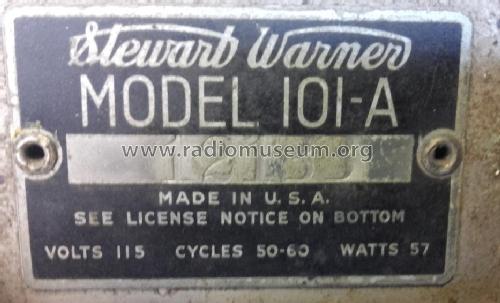

- Model: Console Radio 101-A - Stewart Warner Corp.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 495 x 925 x 325 mm / 19.5 x 36.4 x 12.8 inch
- Notes
-
This is the console radio version of the 101 A model.
- Author
- Model page created by Carlos Sempere-Carrión. See "Data change" for further contributors.
