• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148889

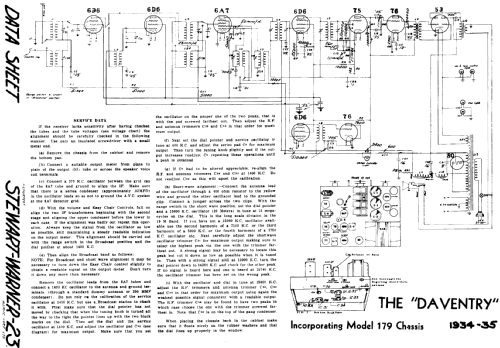

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6D6 6D6 6A7 6D6 75 76 6D6 76 53 80

• Main principle
• Superhet with RF-stage; ZF/IF 370 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: Daventry Ch= 179 - Stewart Warner; Ontario

• Notes
• Push-pull af output stage.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Stewart-Warner Sheet 23

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
