Power Supply & Audio P6

Stewart Warner; Ontario

  • Year
  • 1946
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 148631

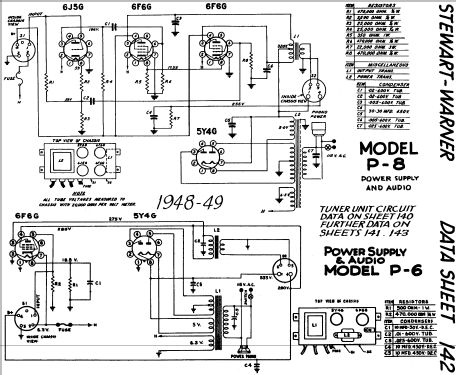

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org
  • Model: Power Supply & Audio P6 - Stewart Warner; Ontario
  • Notes
  • The P6 power supply & audio unit was used in combination with the tuner units M1, M2, M3, M4, M30, M33 and M50.
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Stewart-Warner Sheet 128, 132, 142, 143A
  • Literature/Schematics (1)
  • RCC Stewart-Warner Supplements Sheet 67, 68
