• Year
  • 1931/1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 149491

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 177,5 kHz; Screengrid 1926-1935
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org

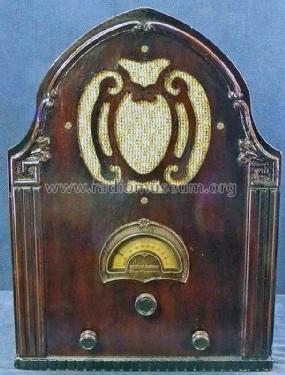

  • Model: R-102A - Stewart Warner; Ontario
  • Notes
  • The same model exists under Stewart Warner Corp.; Chicago.
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Stewart-Warner Sheet 8
