• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149383

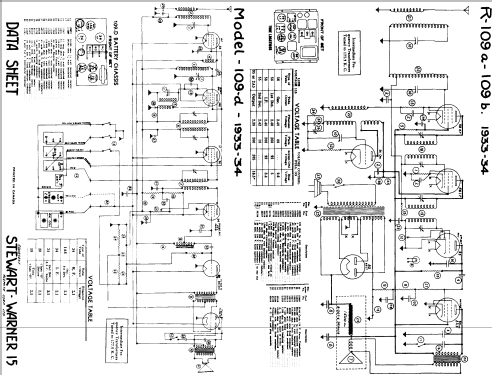

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 34 1A6 34 34 30 19

• Main principle
• Superhet with RF-stage; ZF/IF 177,5 kHz; none

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: R-109D - Stewart Warner; Ontario

• Notes
• Push-pull af output stage.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Stewart-Warner Sheet 15

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.

• Other Models

• Here you find 325 models, 64 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Stewart Warner; Ontario
