• Year
  • 1947 ?
  • Category
  • Miscellaneous (Other, Various) - see notes
  • Radiomuseum.org ID
  • 238052

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Tesla-Apparat 242-01 - Stöhrer, Dr. & Sohn; Kohl, Dr.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 160 x 247 x 115 mm / 6.3 x 9.7 x 4.5 inch
  • Notes

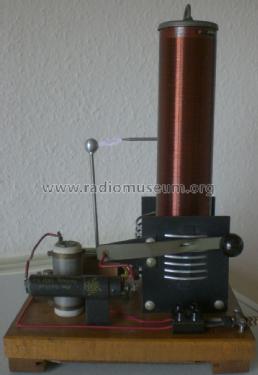

  • Netzbetriebener Teslatransformator für Experimente mit drahtloser Energieübertragung, Resonanz bzw. Hertz'schen Wellen.  Lehrmodell für den Physikunterricht.

    Unterbrecherkontakt, Primärkreis und Tesla-Funkenstrecke variabel; Schaltbild/Prinzipaufbau sind im Grundbrett dokumentiert (herausziehbares Pappschild).

    Achtung! Keine galvanische Trennung vom Stromnetz. Unterbrecher, Drahtwiderstand  und offene Primäspule mit Umschalter sind direkt mit ihm verbunden, die Funkenstrecke nur über einen Kondensator getrennt.

  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
