Metro B

Metro B ; Størens Radiofabrikk (ID = 56608) Radio
Metro B ; Størens Radiofabrikk (ID = 2375980) Radio Metro B ; Størens Radiofabrikk (ID = 2375981) Radio
Metro B ; Størens Radiofabrikk (ID = 2375979) Radio Metro B ; Størens Radiofabrikk (ID = 1295990) Radio
Use red slider bar for more.
Metro B ; Størens Radiofabrikk (ID = 2375980) Radio
Størens Radiofabrikk: Metro B [Radio] ID = 2375980 1400x1007
Select picture or schematic to display from thumbnails on the right and click for download.

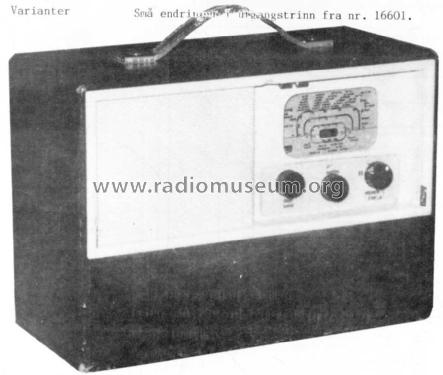

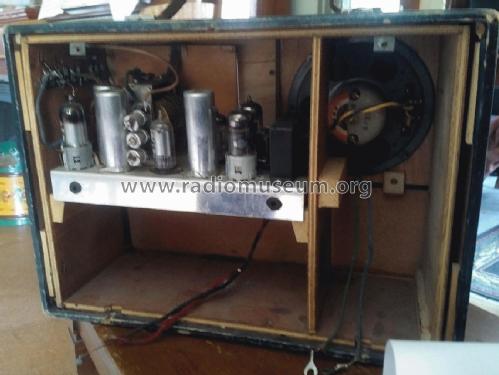

For model Metro B, Størens Radiofabrikk A/S; Oslo

Country:  Norway
Manufacturer / Brand:  Størens Radiofabrikk A/S; Oslo
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DK40 DF91 DAF91 DL41 DL41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Dry Batteries / 90/1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: Metro B - Størens Radiofabrikk A/S; Oslo
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 250 x 160 mm / 13.8 x 9.8 x 6.3 inch
Price in first year of sale 358.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Størens Radiofabrikk A/S; Oslo
Here you find 8 models, 8 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
