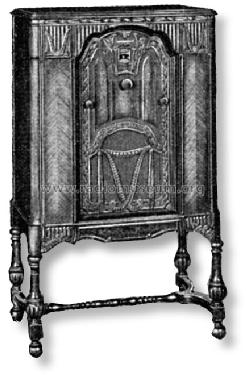

Stromberg-Carlson Co: 10 [Radio] ID = 715401 434x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10, Stromberg-Carlson Co. ; Rochester (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 24 24 24 24 45 45 80
Main principle TRF without regeneration; 1 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 10 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes 4 legged console with stretcher base.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Radio College of Canada
Mentioned in Pre-War Consoles (Rider's 1-14, 1-15, 2-1)
