1135A ; Stromberg-Carlson Co (ID = 444468) Radio
Stromberg-Carlson Co: 1135A [Radio] ID = 444468 400x327
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1135A, Stromberg-Carlson Co. ; Rochester (NY):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16: 6SG7 6SB7Y 6SG7 6SH7 6U5G 6SJ7 6H6 6SQ7 6SL7GT 6SQ7 6SQ7 6SN7 6L6GT 6L6GT 5R4G
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 19 W (unknown quality)
from Radiomuseum.org Model: 1135A - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console with Push Buttons.
External source of data Ernst Erb

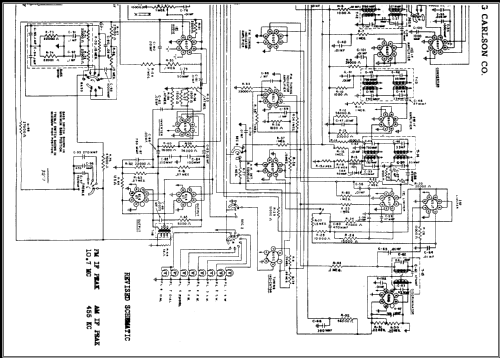

Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before

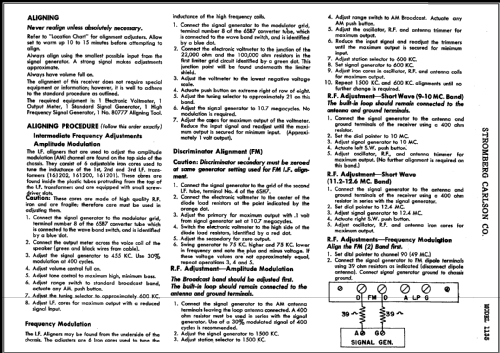

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 23, Folder 4713-26)


All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Here you find 780 models, 473 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
