• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61923

• • Brand: Te-Lek-Tor-Et

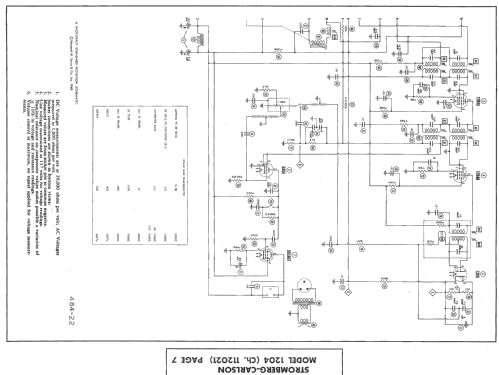

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12BA6 12BE6 12BA6 12BA6 6AQ6 12H6 50L6GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.3 inch = 13.5 cm

• Power out
• 1.25 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

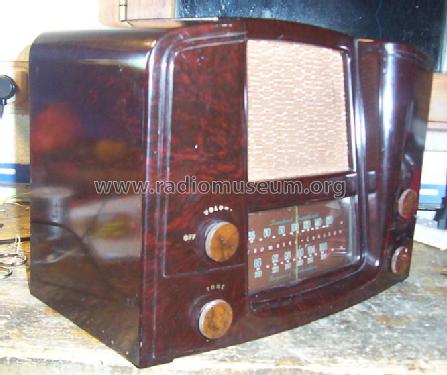

• Model: 1204HB Ch= 112021 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 362 x 268 x 195 mm / 14.3 x 10.6 x 7.7 inch

• Notes
• Selenium Rectifier.

• External source of data
• Ernst Erb

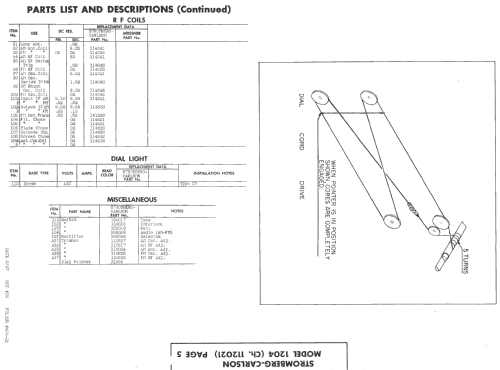

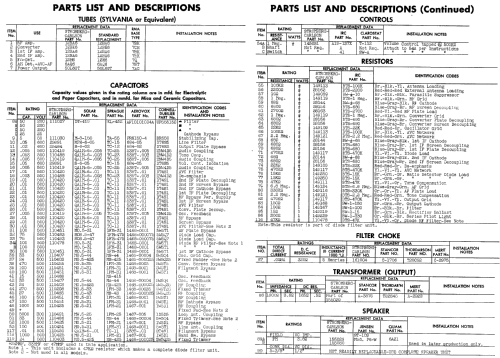

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 158.)
