For model 1235, Stromberg-Carlson Co. ; Rochester (NY):

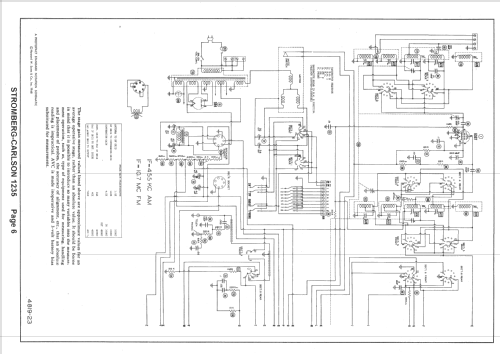

SAMS Photofact Vol.5/48 4819-23 Set 49 Folder 23

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 16:
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 19 W (unknown quality)
from Radiomuseum.org Model: 1235 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console with Push Buttons.
Notes BC (540-1620 kHz) with eight station buttons, SW1 (8.8-10.2 MHz), SW2 (11.2-12.6 MHz) and FM (88-108 MHz) bands. Tuning eye, push-pull audio amplifier.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Rider's 16-9, 16-10, 18-2
