- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1930
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61995
-
- Brand: Te-Lek-Tor-Et

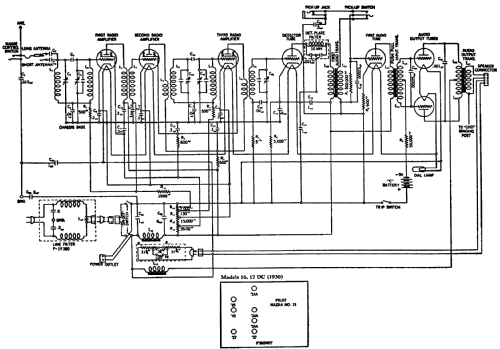

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Direct Current supply (DC) / 110 Volt
- from Radiomuseum.org
- Model: 16 - Stromberg-Carlson Co. ;
- Notes
- Bandfilter input and 3rd RF amp circuits. Push-pull audio amplifier.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Mentioned in
- Rider's 3-12
