Convertible 19

Convertible 19 ; Stromberg-Carlson Co (ID = 1252236) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252237) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252238) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252239) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252240) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252241) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 1252242) Radio

Convertible 19 ; Stromberg-Carlson Co (ID = 21370) Radio

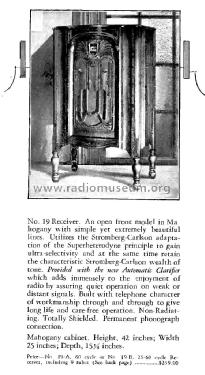

Convertible 19 ; Stromberg-Carlson Co (ID = 715407) Radio Convertible 19 ; Stromberg-Carlson Co (ID = 1172403) Radio
Use red slider bar for more.
Convertible 19 ; Stromberg-Carlson Co (ID = 715407) Radio
Stromberg-Carlson Co: Convertible 19 [Radio] ID = 715407 454x706
Select picture or schematic to display from thumbnails on the right and click for download.
For model Convertible 19, Stromberg-Carlson Co. ; Rochester (NY):
Image Courtesy of Mark V. Stein for Radiomuseum.org use only.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 35 35 27 35 35 27 45 45 80
Main principle Superhet with RF-stage; ZF/IF 175 kHz; 1 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Convertible 19 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes Repwood face.
Push-pull audio amplifier.
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Pre-War Consoles (Rider's 1-19 to 1-21, 2-2, 2-3)
