• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62093
    • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 337-H - Stromberg-Carlson Co. ;
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • BC (530-1700 kHz) band with six station buttons, SW1 (2.25-7.6 MHz) and SW2 (7.6-23.0 MHz) bands. Tuning eye. For 50 to 60 Hz AC.

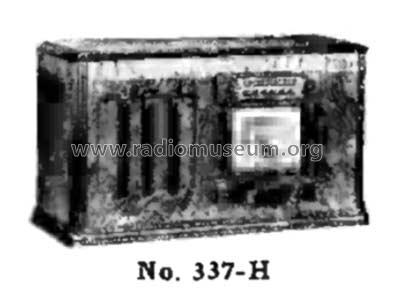

    The image from Stein might be wrong for this model, see pictures of original advert.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Literature/Schematics (2)
  • -- Original prospect or advert (Radio Today, July 1938, p.30)
