400-H Ch= 400

• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62134

• • Brand: Te-Lek-Tor-Et

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7 6SQ7 6V6G 80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

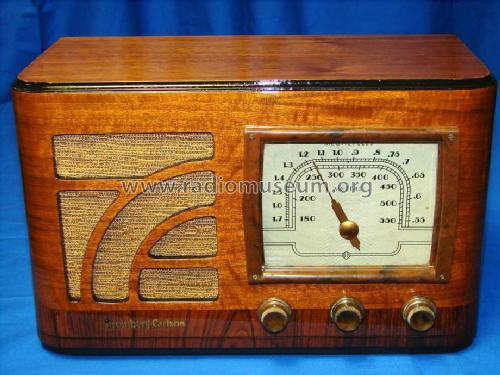

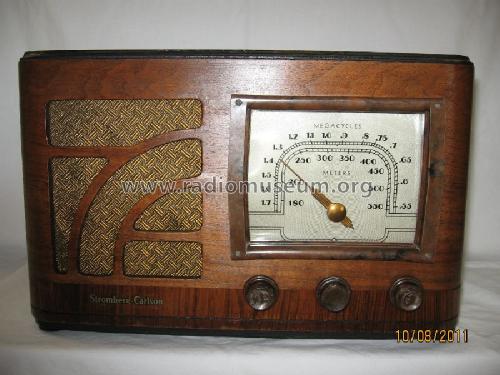

• Model: 400-H Ch= 400 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14.375 x 8.75 x 8.125 inch / 365 x 222 x 206 mm

• Notes

• For 50 to 60 Hz.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Mentioned in
• Guide to Old Radios (Rider's 11-1, 11-2)

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 295.)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (ad June 1939 page 2)
