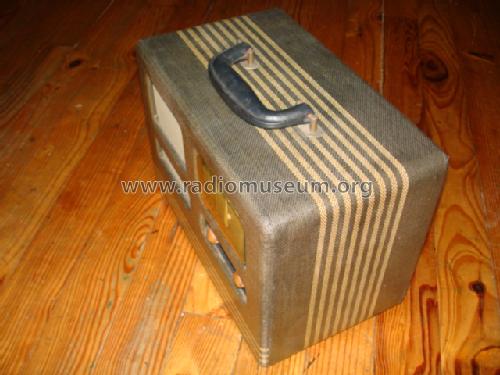

402-H Ch= 402
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156245
-
- Brand: Te-Lek-Tor-Et
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 90 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 402-H Ch= 402 - Stromberg-Carlson Co. ;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 12.25 x 9 x 7 inch / 311 x 229 x 178 mm
- Notes
-
Built-in Loop Antenna with alternate connection for exterior antenna.
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (ad June 1939 page 2)
- Author
- Model page created by Hans De Seijn. See "Data change" for further contributors.
