505-H ; Stromberg-Carlson Co (ID = 1338565) Radio

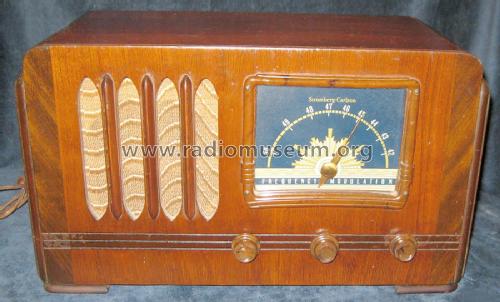

Stromberg-Carlson Co: 505-H [Radio] ID = 1338565 933x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model 505-H, Stromberg-Carlson Co. ; Rochester (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6AC7 6SA7 6AB7 6AC7 6SJ7 6H6 6SF5 6F6G 80
Main principle Superhet with RF-stage; ZF/IF 4300 kHz; 2 AF stage(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 505-H - Stromberg-Carlson Co. ;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16.5 x 9.5 x 8.25 inch / 419 x 241 x 210 mm
Notes

FM (42.0-50.0 MHz) (now obsolete) band. For 50 to 60 Hz AC.

Net weight (2.2 lb = 1 kg) 18.1 lb (18 lb 1.6 oz) / 8.217 kg
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Rider's 12-1 to 12-4, 12-8
Literature/Schematics (3) Stromberg-Carlson Cir. #1043, Season 1941
