634

634 ; Stromberg-Carlson Co (ID = 242631) Radio

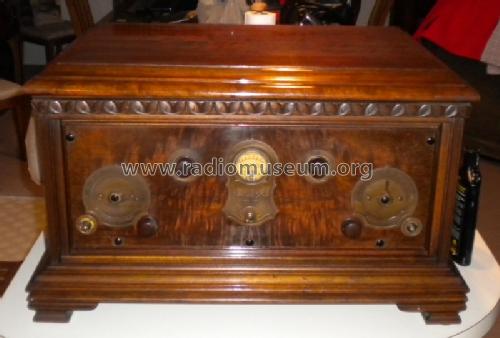

634 ; Stromberg-Carlson Co (ID = 1493655) Radio 634 ; Stromberg-Carlson Co (ID = 1488786) Radio
634 ; Stromberg-Carlson Co (ID = 1493656) Radio 634 ; Stromberg-Carlson Co (ID = 1488787) Radio
634 ; Stromberg-Carlson Co (ID = 1493657) Radio 634 ; Stromberg-Carlson Co (ID = 1493658) Radio
Use red slider bar for more.
634 ; Stromberg-Carlson Co (ID = 1493655) Radio
Stromberg-Carlson Co: 634 [Radio] ID = 1493655 933x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model 634, Stromberg-Carlson Co. ; Rochester (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UX201A UX201A UX201A UX201A UX201A UX171A
Main principle TRF without regeneration; 2 AF stage(s); Neutrodyne
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / -4.5 & 6 & 45 & 90 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 634 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Console with any shape - in general
Notes Two dials (primary tuning control knobs)
Price in first year of sale 505.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's 1-4)
