652-A

Stromberg-Carlson Co. ; Rochester (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1929/1930
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62279
    • Brand: Te-Lek-Tor-Et

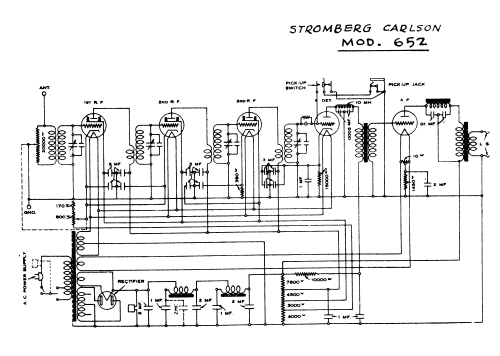

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 652-A - Stromberg-Carlson Co. ;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24.5 x 42 x 15 inch / 622 x 1067 x 381 mm
  • Notes
  • The Stromberg-Carlson model 652 console was made in three versions: 652-A, 652-B and 652-C. At the same time Stromberg-Carlson anounced the Radio-Phonograph combination model 654 which uses the same schematic - according to Rider's 1-10. The 652-A is for 60 cycles 115 volts mains, 652-B is for 25 - 60 cycles 115 volts and 652-C for 25 - 60 cycles 210-250 volts.

    Text about the model 652: "Power and linear detection. Each radio stage and the detector stage totally shielded, individually and over-all. Finished in walnut with heavy Baroque supporting legs." ... The design of this new No. 652 console was influenced by the phenomenal acceptance of the No. 642 Stromberg-Carlson. Its size and style make it particularly suitable for the newer apartments and homes of today, with their smaller rooms. ... With this new console added to the Nos. 641, 642, and 846, Stromberg-Carlson dealers will be able to meet every decorative - and radio - demand of the public, at the most attractive range of prices. Despite its compactness, the new No. 652 embodies the complete, perfected Stromberg-Carlson Triple Screen Grid Radio Frequency system with all its marvelous pick-up and selectivity.
  • Price in first year of sale
  • 239.00 $
  • External source of data
  • Ernst Erb
