752

• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 232620

• • Brand: Te-Lek-Tor-Et

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands

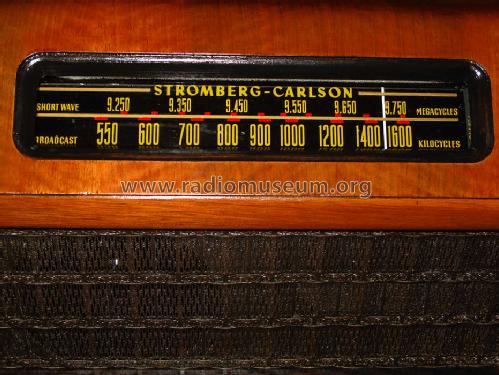

• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 752 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 240 x 200 mm / 15 x 9.4 x 7.9 inch

• Notes

• See also the Radio-Phonograph 752 APT.

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
