AM-666

AM-666 ; Stromberg-Carlson Co (ID = 648123) Ampl/Mixer
AM-666 ; Stromberg-Carlson Co (ID = 2485013) Ampl/Mixer
Use red slider bar for more.
AM-666 ; Stromberg-Carlson Co (ID = 2485013) Ampl/Mixer
Stromberg-Carlson Co: AM-666 [Ampl/Mixer] ID = 2485013 600x925
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-666, Stromberg-Carlson Co. ; Rochester (NY):
From 1960 Stromberg advertisement

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1959 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 5: 2N214 2N226 2N226 2N257 2N257
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 14 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AM-666 - Stromberg-Carlson Co. ;
Notes The Stromberg-Carlson Model AM-666 is an Transitorized Audio Amplifier.

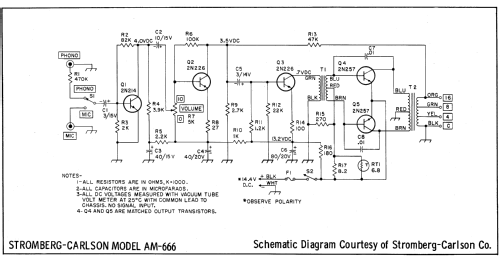

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Servicer)

Model page created by Egon Penker. See "Data change" for further contributors.
