Amplifier AP-50

Amplifier AP-50; Stromberg-Carlson Co (ID = 2483629) Ampl/Mixer
Amplifier AP-50; Stromberg-Carlson Co (ID = 2483628) Ampl/Mixer
Use red slider bar for more.
Amplifier AP-50; Stromberg-Carlson Co (ID = 2483628) Ampl/Mixer
Stromberg-Carlson Co: Amplifier AP-50 [Ampl/Mixer] ID = 2483628 1400x1289
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier AP-50, Stromberg-Carlson Co. ; Rochester (NY):
From Sams

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1951 ? Category: Audio Amplifier or -mixer
Valves / Tubes 8: 6SN7GT 6N7 6L6 6L6 6L6 6L6 5U4G 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (undistorted)
from Radiomuseum.org Model: Amplifier AP-50 - Stromberg-Carlson Co. ;
Material Metal case, TUBES VISIBLE
Shape Chassis only or for «building in»

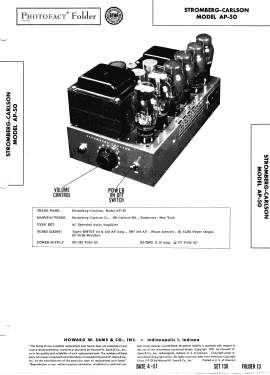

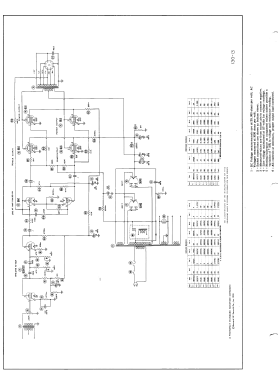

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 130, Folder 13)

Model page created by Thomas Bavis. See "Data change" for further contributors.
