Amplifier AR-410

Amplifier AR-410; Stromberg-Carlson Co (ID = 2482477) Ampl/Mixer
Amplifier AR-410; Stromberg-Carlson Co (ID = 1974583) Ampl/Mixer Amplifier AR-410; Stromberg-Carlson Co (ID = 1979156) Ampl/Mixer
Amplifier AR-410; Stromberg-Carlson Co (ID = 1990334) Ampl/Mixer Amplifier AR-410; Stromberg-Carlson Co (ID = 1990335) Ampl/Mixer
Amplifier AR-410; Stromberg-Carlson Co (ID = 1990336) Ampl/Mixer Amplifier AR-410; Stromberg-Carlson Co (ID = 1990337) Ampl/Mixer
Amplifier AR-410; Stromberg-Carlson Co (ID = 1990338) Ampl/Mixer
Use red slider bar for more.
Amplifier AR-410; Stromberg-Carlson Co (ID = 1974583) Ampl/Mixer
Stromberg-Carlson Co: Amplifier AR-410 [Ampl/Mixer] ID = 1974583 751x536
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier AR-410, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, #111628966570, Verkäufer mx.rang

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1953 Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AU7 12AX7 12AT7 6F6 6F6 5Y3GT/G
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (undistorted)
from Radiomuseum.org Model: Amplifier AR-410 - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 11 x 7 x 8 inch / 279 x 178 x 203 mm
Notes

Integrated amplifier, mono; phono equalization switchable for Foreign or American records.

Net weight (2.2 lb = 1 kg) 20 lb (20 lb 0 oz) / 9.080 kg
Mentioned in -- Original prospect or advert

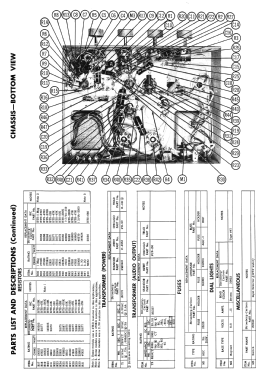

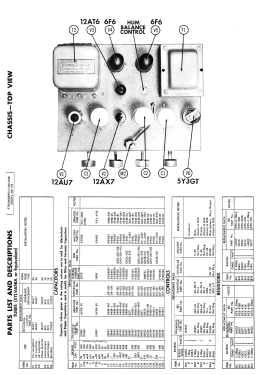

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 194, Folder 12, Date 2-53)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
