Amplifier AU-58B

Amplifier AU-58B; Stromberg-Carlson Co (ID = 2482488) Ampl/Mixer
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463570) Ampl/Mixer Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463571) Ampl/Mixer
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463572) Ampl/Mixer Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463573) Ampl/Mixer
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463574) Ampl/Mixer Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463575) Ampl/Mixer
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463576) Ampl/Mixer Amplifier AU-58B; Stromberg-Carlson Co (ID = 1518013) Ampl/Mixer
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1518014) Ampl/Mixer Amplifier AU-58B; Stromberg-Carlson Co (ID = 1518015) Ampl/Mixer
Use red slider bar for more.
Amplifier AU-58B; Stromberg-Carlson Co (ID = 1463570) Ampl/Mixer
Stromberg-Carlson Co: Amplifier AU-58B [Ampl/Mixer] ID = 1463570 933x551
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier AU-58B, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, #380641029627, mit Erlaubnis des Verkäufers jrcradio

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1955 ?? Category: Audio Amplifier or -mixer

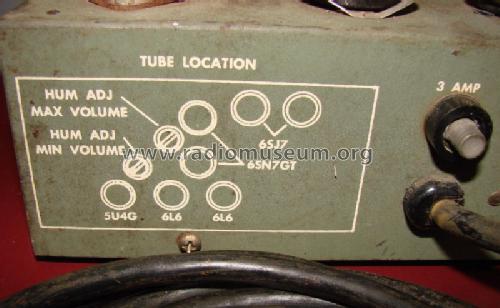

Valves / Tubes 7: 6SJ7 6SJ7 6SN7GT 6SN7GT 6L6 6L6 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Amplifier AU-58B - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 14 x 6 x 8 inch / 356 x 152 x 203 mm
Notes

PA amplifier with 2 inputs: 2x Mic or Mic + Phono.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
