Record Amplifier AR-37
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1951/1947 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 219333
-
- Brand: Te-Lek-Tor-Et
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (unknown quality)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Record Amplifier AR-37 - Stromberg-Carlson Co. ;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 10 x 6.375 x 6 inch / 254 x 162 x 152 mm
- Notes
-

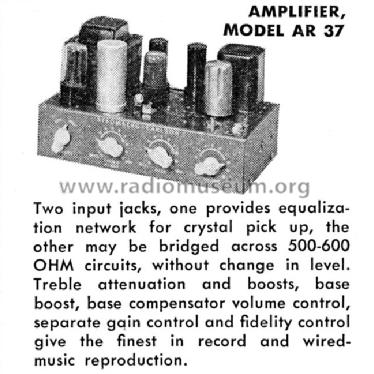

Stromberg-Carlson model AR-37 is an AC operated audio amplifier for phonograph.
Two input jacks, one provides equalization network for crystal pick up, the other may be bridged across 500-600 ohm circuits, whithout change in level. Treble attenuation and boosts, bass boost, bass compensator volume control give the finest in record and wired-music reproduction.
- Net weight (2.2 lb = 1 kg)
- 12.5 lb (12 lb 8 oz) / 5.675 kg
- Mentioned in

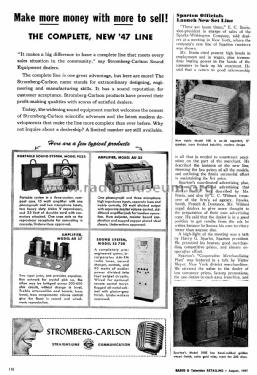

- Radio Retailing (Radio & Television R.) (August 1947 page 110.)
- Literature/Schematics (1)
- Stromberg-Carlson 1950 Sound Equipment Catalog page 6.
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 128 Folder 14 dated 3-51)
- Literature/Schematics (3)
- Riders PA Manual
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
