AR-415

AR-415 ; Stromberg-Carlson Co (ID = 766629) Ampl/Mixer

AR-415 ; Stromberg-Carlson Co (ID = 766630) Ampl/Mixer

AR-415 ; Stromberg-Carlson Co (ID = 766631) Ampl/Mixer

AR-415 ; Stromberg-Carlson Co (ID = 766632) Ampl/Mixer
AR-415 ; Stromberg-Carlson Co (ID = 766628) Ampl/Mixer
Use red slider bar for more.
AR-415 ; Stromberg-Carlson Co (ID = 766628) Ampl/Mixer
Stromberg-Carlson Co: AR-415 [Ampl/Mixer] ID = 766628 650x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-415, Stromberg-Carlson Co. ; Rochester (NY):

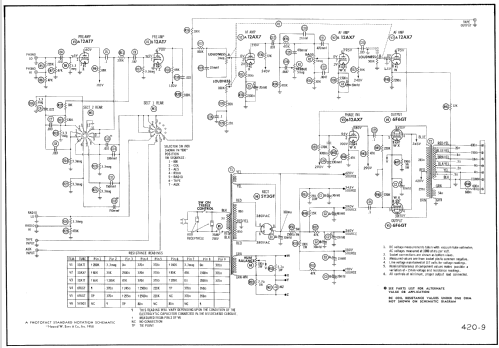

Sams Photofact Folders reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1958 Category: Audio Amplifier or -mixer
Valves / Tubes 6: 12AX7 12AX7 12AT7 6F6GT 6F6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105 -125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AR-415 - Stromberg-Carlson Co. ;
Material Metal case
Shape Tablemodel, with any shape - general.
Notes The Stromberg Carlson Model AR-415 is an AC operated 6 Tube Audio Amplifier.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 11-58, Set 420, Folder 9)

Model page created by Egon Penker. See "Data change" for further contributors.
