AR-419

AR-419; Stromberg-Carlson Co (ID = 2475931) Ampl/Mixer

AR-419; Stromberg-Carlson Co (ID = 2475932) Ampl/Mixer

AR-419; Stromberg-Carlson Co (ID = 2475933) Ampl/Mixer

AR-419; Stromberg-Carlson Co (ID = 2475934) Ampl/Mixer

AR-419; Stromberg-Carlson Co (ID = 2475935) Ampl/Mixer

AR-419; Stromberg-Carlson Co (ID = 2475936) Ampl/Mixer
AR-419; Stromberg-Carlson Co (ID = 2475930) Ampl/Mixer
Use red slider bar for more.
AR-419; Stromberg-Carlson Co (ID = 2475930) Ampl/Mixer

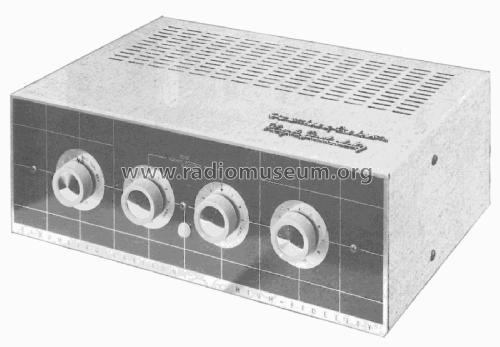

Stromberg-Carlson Co: AR-419 [Ampl/Mixer] ID = 2475930 1400x973
Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-419, Stromberg-Carlson Co. ; Rochester (NY):
Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1957 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: 6SJ7 12AT7 12AT7 6L6GB 6L6GB 5U4GB
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AR-419 - Stromberg-Carlson Co. ;
Material Metal case
Shape Book-shelf unit.
Notes

Stromberg-Carlson model AR-419 is an AC operated audio amplifier.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 379 Folder 14 dated 11-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
