AU35

AU35 ; Stromberg-Carlson Co (ID = 2482756) Ampl/Mixer
AU35 ; Stromberg-Carlson Co (ID = 159237) Ampl/Mixer AU35 ; Stromberg-Carlson Co (ID = 159240) Ampl/Mixer
AU35 ; Stromberg-Carlson Co (ID = 159242) Ampl/Mixer AU35 ; Stromberg-Carlson Co (ID = 159238) Ampl/Mixer
AU35 ; Stromberg-Carlson Co (ID = 159239) Ampl/Mixer AU35 ; Stromberg-Carlson Co (ID = 159241) Ampl/Mixer
AU35 ; Stromberg-Carlson Co (ID = 159243) Ampl/Mixer AU35 ; Stromberg-Carlson Co (ID = 1183411) Ampl/Mixer
AU35 ; Stromberg-Carlson Co (ID = 1215345) Ampl/Mixer AU35 ; Stromberg-Carlson Co (ID = 1259527) Ampl/Mixer
Use red slider bar for more.
AU35 ; Stromberg-Carlson Co (ID = 159237) Ampl/Mixer

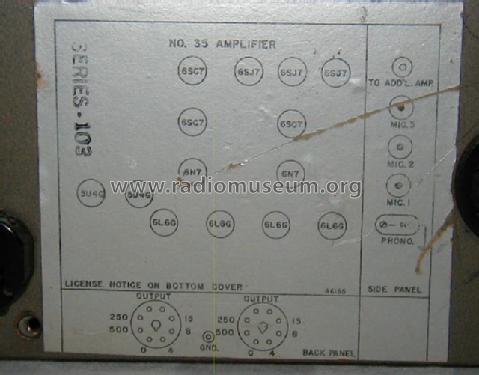

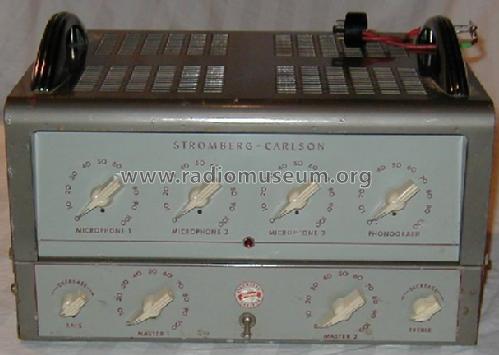

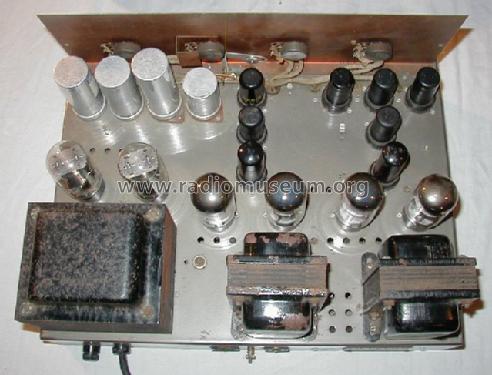

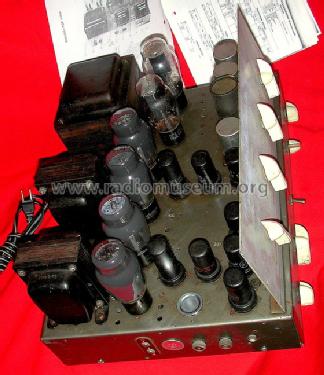

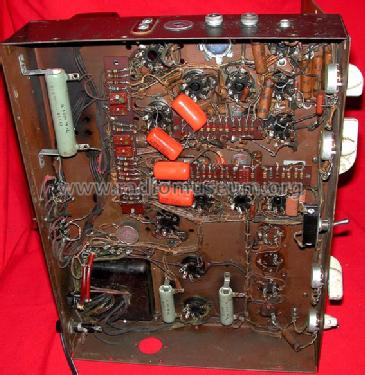

Stromberg-Carlson Co: AU35 [Ampl/Mixer] ID = 159237 608x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model AU35, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, Verkäufer oldhifi

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1946–1951 Category: Audio Amplifier or -mixer
Valves / Tubes 14: 6SJ7 6SJ7 6SJ7 6SC7 6SC7 6SC7 6N7 6N7 6L6G 6L6G 6L6G 6L6G 5U4G 5U4G
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (unknown quality)
from Radiomuseum.org Model: AU35 - Stromberg-Carlson Co. ;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 25 x 18 x 22 inch / 635 x 457 x 559 mm
Notes

Mono, mit 2 Endstufen.

Mentioned in Radio Retailing (Radio & Television R.) (February 1947 page 147. June 1947 page 143.)

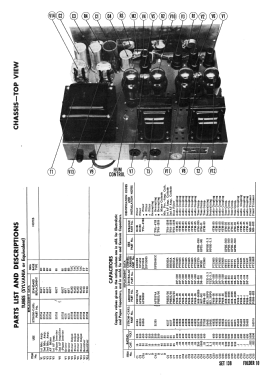

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-1951, Set 138, Folder 10)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
