C-3

C-3 ; Stromberg-Carlson Co (ID = 121708) Radio

C-3 ; Stromberg-Carlson Co (ID = 226345) Radio
C-3 ; Stromberg-Carlson Co (ID = 2329664) Radio C-3 ; Stromberg-Carlson Co (ID = 255483) Radio
C-3 ; Stromberg-Carlson Co (ID = 1479365) Radio C-3 ; Stromberg-Carlson Co (ID = 2329663) Radio
C-3 ; Stromberg-Carlson Co (ID = 2329665) Radio
Use red slider bar for more.
C-3 ; Stromberg-Carlson Co (ID = 2329664) Radio
Stromberg-Carlson Co: C-3 [Radio] ID = 2329664 1188x706

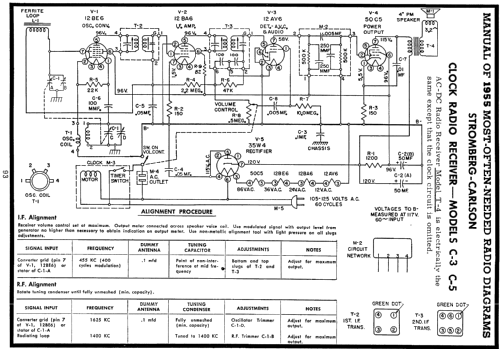

Select picture or schematic to display from thumbnails on the right and click for download.

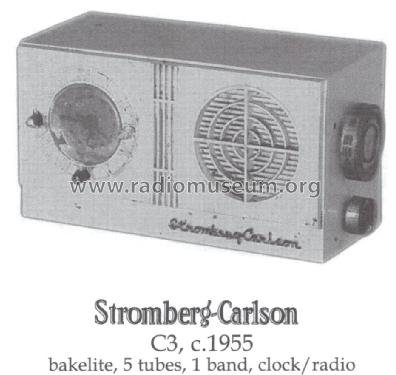

For model C-3, Stromberg-Carlson Co. ; Rochester (NY):
ebay.com 263240649999 seller ruthhannas

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C-3 - Stromberg-Carlson Co. ;
Material Bakelite case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Source of data Beitman Radio Diagrams, Vol. 15, 1955
Mentioned in Table Top Radios Vol. 1 Stein 98 (page 158.)

Model page created by Egon Penker. See "Data change" for further contributors.



All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Here you find 779 models, 473 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
