C-5

C-5 ; Stromberg-Carlson Co (ID = 121707) Radio
C-5 ; Stromberg-Carlson Co (ID = 1996389) Radio C-5 ; Stromberg-Carlson Co (ID = 2146922) Radio
C-5 ; Stromberg-Carlson Co (ID = 2146923) Radio C-5 ; Stromberg-Carlson Co (ID = 2146924) Radio

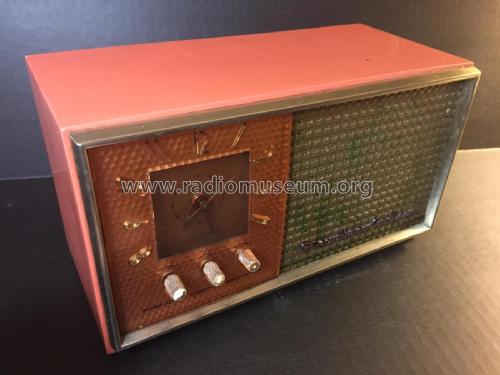

C-5 ; Stromberg-Carlson Co (ID = 2146925) Radio C-5 ; Stromberg-Carlson Co (ID = 2146926) Radio
C-5 ; Stromberg-Carlson Co (ID = 2146927) Radio
Use red slider bar for more.

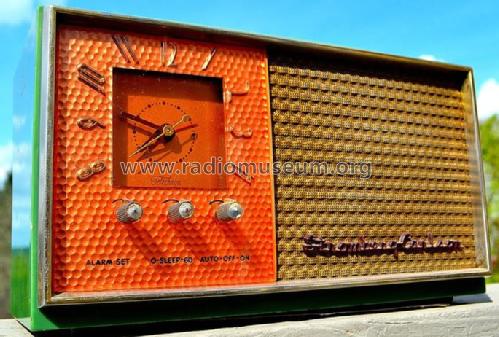

C-5 ; Stromberg-Carlson Co (ID = 1996389) Radio
Stromberg-Carlson Co: C-5 [Radio] ID = 1996389 686x463
Select picture or schematic to display from thumbnails on the right and click for download.
For model C-5, Stromberg-Carlson Co. ; Rochester (NY):
This photo was found on the web at the following link. ..retroradiofarm.com/collections/2014-sold-radios/products/beautiful-green-and-copper-retro-jetsons-1950s-stromberg-carlson-c-5-tube-am-clock-radio-works

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C-5 - Stromberg-Carlson Co. ;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Source of data Beitman Radio Diagrams, Vol. 15, 1955

Model page created by Egon Penker. See "Data change" for further contributors.
