C.A.R.7

C.A.R.7 ; Stromberg-Carlson Co (ID = 596328) Car Radio

C.A.R.7 ; Stromberg-Carlson Co (ID = 596329) Car Radio

C.A.R.7 ; Stromberg-Carlson Co (ID = 596330) Car Radio

C.A.R.7 ; Stromberg-Carlson Co (ID = 596331) Car Radio

C.A.R.7 ; Stromberg-Carlson Co (ID = 596332) Car Radio

C.A.R.7 ; Stromberg-Carlson Co (ID = 596333) Car Radio
C.A.R.7 ; Stromberg-Carlson Co (ID = 596327) Car Radio
Use red slider bar for more.
C.A.R.7 ; Stromberg-Carlson Co (ID = 596327) Car Radio
Stromberg-Carlson Co: C.A.R.7 [Car Radio] ID = 596327 700x414
Select picture or schematic to display from thumbnails on the right and click for download.
For model C.A.R.7, Stromberg-Carlson Co. ; Rochester (NY):

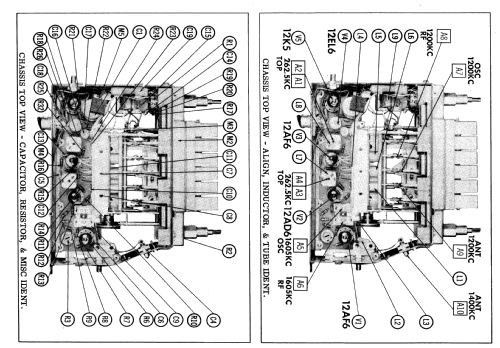

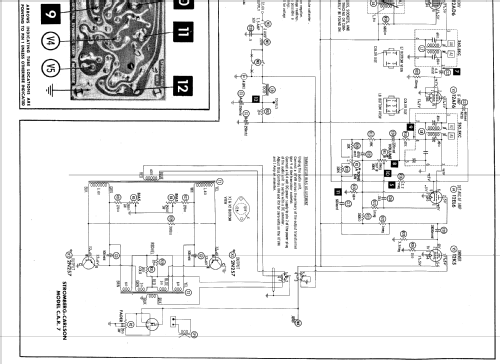

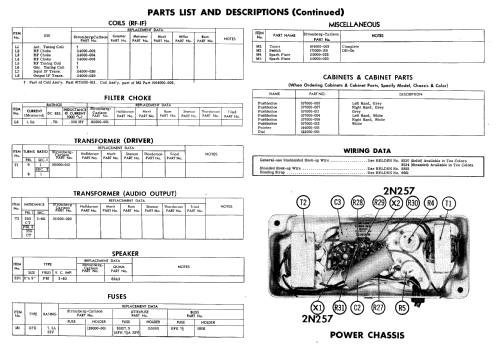

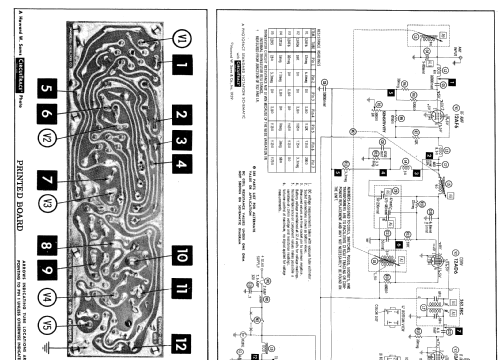

Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1959 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 12AF6 12AD6 12AF6 12EL6 12K5
Semiconductors (the count is only for transistors) 2: 2N257 2N257
Main principle Superhet with RF-stage; ZF/IF 262.5 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: C.A.R.7 - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Notes The Stromberg-Carlson Model C.A.R.7 is a Battery operated 5 Tube Custom Built AM Automobile Receiver with Transistorized Output

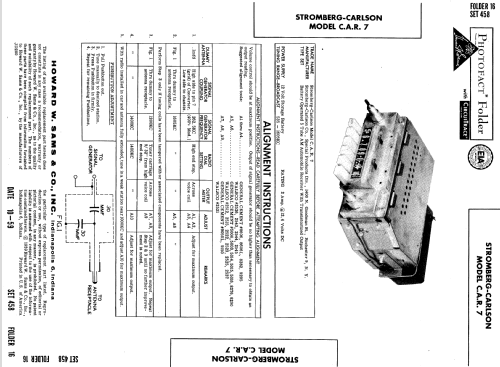

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-59, Set 458, Folder 16)

Model page created by Egon Penker. See "Data change" for further contributors.
