Custom Four Hundred AR 420

Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 2452555) Ampl/Mixer
Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 1263128) Ampl/Mixer Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 459817) Ampl/Mixer
Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 459818) Ampl/Mixer Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 459819) Ampl/Mixer
Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 459820) Ampl/Mixer Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 1263129) Ampl/Mixer
Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 1263130) Ampl/Mixer
Use red slider bar for more.
Custom Four Hundred AR 420; Stromberg-Carlson Co (ID = 1263128) Ampl/Mixer
Stromberg-Carlson Co: Custom Four Hundred AR 420 [Ampl/Mixer] ID = 1263128 933x621
Select picture or schematic to display from thumbnails on the right and click for download.

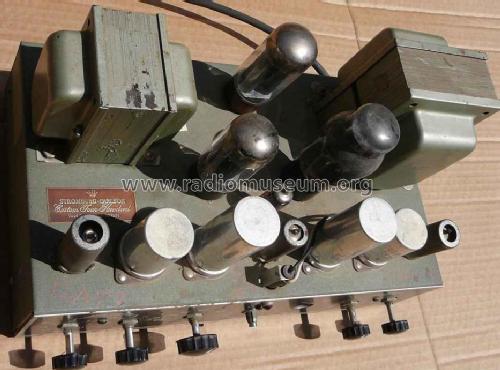

For model Custom Four Hundred AR 420, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, #290729891094, mit Erlaubnis des Verkäufers urbanradio

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1950 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 7: 12AY7 12AT7 6AU6 6AU6 6L6 6L6 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Custom Four Hundred AR 420 - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Notes "High Fidelity" amp with adjustable phono equalization.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.



All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Here you find 779 models, 473 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
