Dual Channel Power Amplifier ASP-60

Dual Channel Power Amplifier ASP-60; Stromberg-Carlson Co (ID = 2482456) Ampl/Mixer
Dual Channel Power Amplifier ASP-60; Stromberg-Carlson Co (ID = 1994538) Ampl/Mixer Dual Channel Power Amplifier ASP-60; Stromberg-Carlson Co (ID = 1994541) Ampl/Mixer
Dual Channel Power Amplifier ASP-60; Stromberg-Carlson Co (ID = 2059399) Ampl/Mixer
Use red slider bar for more.
Dual Channel Power Amplifier ASP-60; Stromberg-Carlson Co (ID = 1994538) Ampl/Mixer

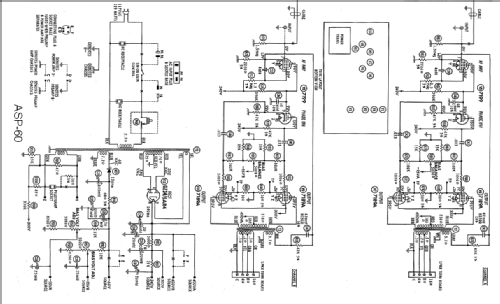

Stromberg-Carlson Co: Dual Channel Power Amplifier ASP-60 [Ampl/Mixer] ID = 1994538 1152x824
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Channel Power Amplifier ASP-60, Stromberg-Carlson Co. ; Rochester (NY):
aus ebay, #262428055609, Verkäufer junkman1952

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1960 ? Category: Audio Amplifier or -mixer
Valves / Tubes 7: 7199 7199 7189A 7189A 7189A 7189A 5AR4
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - This model requires external speaker(s).
Power out 32 W (48 W max.)
from Radiomuseum.org Model: Dual Channel Power Amplifier ASP-60 - Stromberg-Carlson Co. ;
Material Metal case
Shape Chassis only or for «building in»
Notes

Power amplifier, stereo, 2x 16 watt;  pairs with Preamp ASE-6.

Mentioned in Photofact Folder, Howard W. SAMS

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
